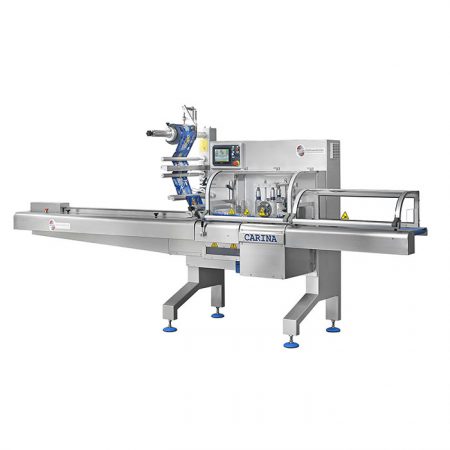

CARINA 500 E

Carina_500

FEATURES

  • Main machine structure in painted steel RAL 9006 and stainless steel AISI 304 guards;

  •  Cantee-lever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area;

  • 2100mm long infeed conveyor (usable loading space 1400mm approx.) complete with stainless steel AISI 304 deck plates and side guards;

  • Food grade nylon pushers and pushers supports;Longitudinal fin seal assembly carried out by 2 sets of independent fin wheels diameter 120mm. First set is for pulling , second one is for sealing;One up-rotary motion sealing assembly with 240mm wide jaws and transverse or longitudinal sealing pattern complete with inclined cutting knife assembly.

  • Sealing surface width 12,5mm;

  • Electronic torque limiter on transverse sealing jaws;

  • Motorization by means of 3 brushless motors ,one for the infeed conveyor, one for fin wheels assembly and one for transverse jaws assembly;

  • One self centering cantilever film roll holder 500mm wide from the top;

  • Discharge conveyor belt one meter long;

  • Shock proof Plexiglas safety guards with safety micro switches;

  • Color touch screen with the possibility to store up to 99 working programs;

  • One adjustable or one fixed forming box;

  • Machine direction from left to right as shown on general catalog;

  • Pneumatic components: FESTO;

  • Machine built in accordance with CE standards;

  • Voltage: 400V , 3PH , T+N
